Choosing the Right Connector for Active Fall Protection

By Mel Moss

Workers at height depend on more than the individual components of a fall protection system. Those components must be selected for the specific job, work environment and anchorage conditions—and they must work together as a complete system.

The connector is a critical part of that equation. Whether the application calls for an energy-absorbing lanyard or a self-retracting lifeline (SRL), choosing the wrong connector can affect fall clearance, mobility, free-fall distance and ultimately the system’s ability to arrest a fall as intended.

That’s why understanding the difference between passive and active fall protection—and knowing how to select the appropriate connector—is so important. Passive systems, such as guardrails, provide protection without requiring a worker to actively connect to the system. Active fall protection requires proper planning, equipment selection, inspection, connection and use. Each of those elements must work together to protect the worker.

That’s exactly why it’s so important to understand the difference between passive and active fall protection. Passive systems, such as guardrails and safety nets, provide protection without requiring the worker to actively connect to the system. Active systems, however, depend on proper planning, equipment selection, inspection, connection, and use. The fall-protection plan, competent person, and training should establish the appropriate system before work begins, so workers are not left making critical equipment decisions in the field.

The Big Difference

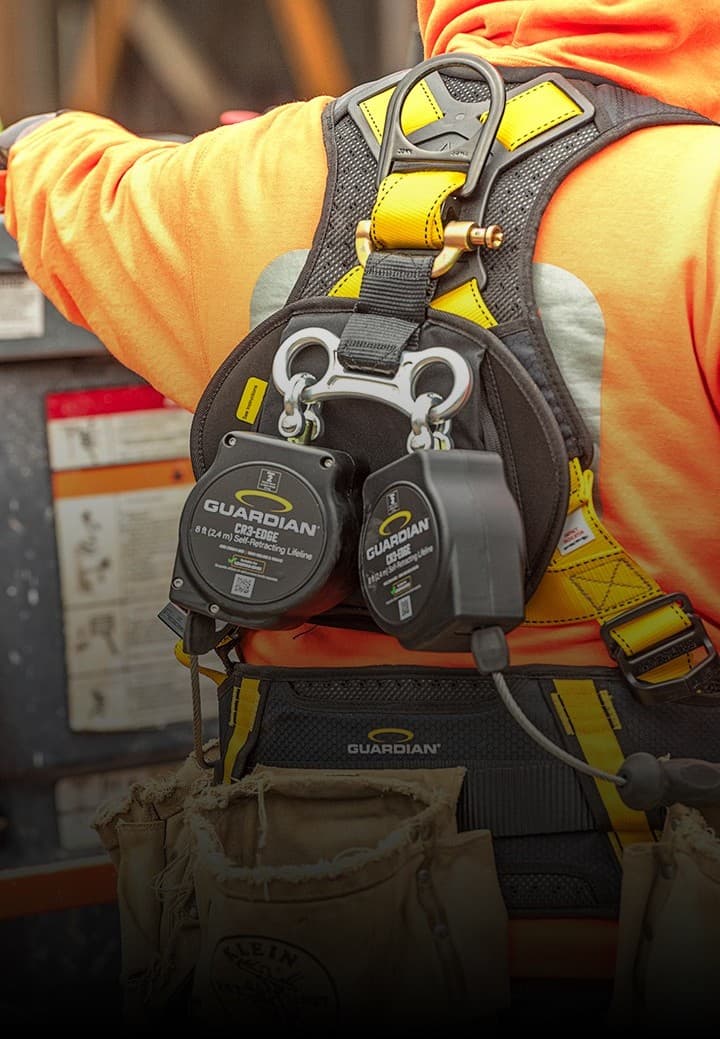

The most common connectors in active fall protection work in different ways. On one hand, you have lanyards, which come with a fixed length. On the other, there are self-retracting lifelines (SRLs), which extend and retract as the worker moves and give out line, only when it’s needed. Both lanyards and SRLs are incredibly common, but they aren’t interchangeable.

So, how can you choose between the two? Picking the right connector depends on several important factors, which include the specific task and the site’s conditions. If those factors are ignored and a connector is chosen on a whim, that’s where trouble can start.

What’s The Big Deal?

First of all, using the wrong connector can create risks that aren’t obvious from the ground. Take fall clearance, for example. A six-foot energy-absorbing lanyard may require roughly 18 feet of clearance in some applications, depending on the equipment, anchorage location, and manufacturer requirements. On a platform 15 feet from the ground, that may not provide enough room to arrest a fall safely. In the same situation, a self-retracting lifeline could be a more appropriate solution. Always calculate fall clearance using the manufacturer’s instructions for the specific equipment and application.

Conversely, while self-retracting lifelines reduce free-fall distance and allow greater movement, workers must adhere to highly specific requirements. SRLs must be used according to the manufacturer's instructions and only for the specific jobs they’re designed for. An SRL rated for overhead anchorage, a Class 1 SRL, for instance, might not be approved for leading-edge work. Any worker who tries connecting that SRL at foot level on a roof edge is putting themselves in harm’s way. The device itself could be in perfect working condition, but if it hasn’t been tested and approved for the application, it isn’t safe.

Understanding SRL Classes

These choices can be confusing, so it’s important to be clear about how SRLs are classified. These lifelines are always grouped by the types of jobs they’re meant for, and knowing these categories helps safety teams choose the right equipment for each task.

Class 1 SRLs are used for overhead anchorage, where the connector is attached at or above the worker’s back D-ring, while Class 2 SRLs are designed for a broader range of applications, including foot-level anchorage and leading-edge exposure.

Because Class 2 SRLs are built for more demanding conditions, they generally offer greater versatility than Class 1 devices. A Class 2 SRL can typically be used in applications suited for Class 1 equipment, while the reverse is not true. That makes understanding the device’s class—and the conditions it is approved for—an important part of selecting the right SRL for the job.

Stick To The Plan

Connector problems start with something small, like a hasty equipment choice when options are limited, and that single decision can create a mess of consequences. Most often, that first mistake only happened because nobody asked the right questions. Workers need to ask about fall clearance, anchorage, compatibility, and other considerations, and the planning process shouldn’t proceed until all these questions are answered. The reality is that better planning and training will always help the worker make better choices and prevent problems from arising.

Pre-task planning should assess fall clearance and anchorage conditions for each specific work area, since conditions can vary significantly. Meanwhile, training should cover why a connector was chosen for its job, its limits, and what could happen if it fails. When workers understand their equipment, they’re better prepared to notice and take action when something changes. If a program calls for a specific connector but the crew only has one type in the truck, you can plan all you want, but  it won’t help much. Stocking the connectors needed for the work is key to making good choices possible.

How It All Connects


So, which connector is right for the job? Start with the work environment rather than the equipment.
