Horizontal Lifeline Absorbinator Attachment System

Products / Horizontal Lifelines (HLL)

Product images are representative only.

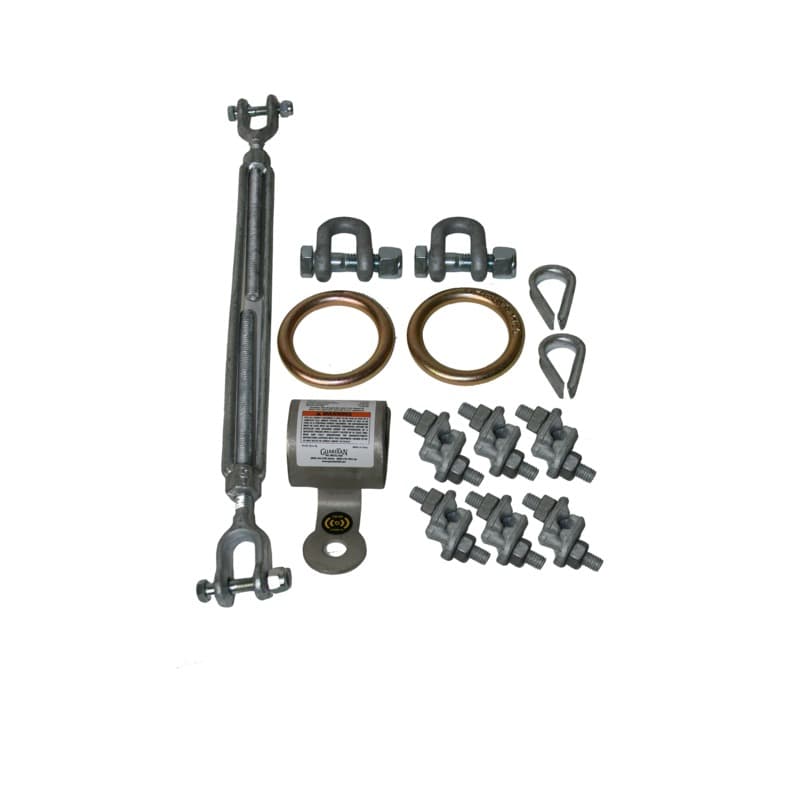

A permanent cable HLL system

The term "Absorbinator" refers to the in-line shock absorbing component of this cable HLL system. It helps redirect forces away from the line and, in turn, the user. Absorbinator Systems are highly modular and can be configured to mount on both horizontal and vertical surfaces, and are compatible with a large range of anchorage connectors. This HLL system can support up to two workers in Fall Arrest applications, and is ideal for providing fall protection coverage over a large work area.

If known, input the specific Part Number here of a pre-configured product:



Features

  • Manufactured from a variety of highly durable and long lasting components intended for permanent installation
  • Wire cable (part # 01400) is sold separately and cut to order to accommodate specific span length requirements
  • Can be used in combination with any of Guardian's HLL-compatible anchor points
  • Specific systems available pre-configured to eliminate guesswork regarding exact component requirements


Specifications

Product weight

11.3LB / 4.99KG

Product length

20'' / 50.80CM

Product height

1'' / 2.54CM


FAQS

Yes, span lengths 60' and greater require an Absorbinator to be installed at each HLL end point.

Compliance

This product meets the following regional compliance standards

  • OSHA 1910.140

  • OSHA 1926.502


Industries

This product is often used in the following industries

  • Construction
  • Mining
  • Renewables
