Cable Climbing System

Products / Ladder Safety

Product images are representative only.

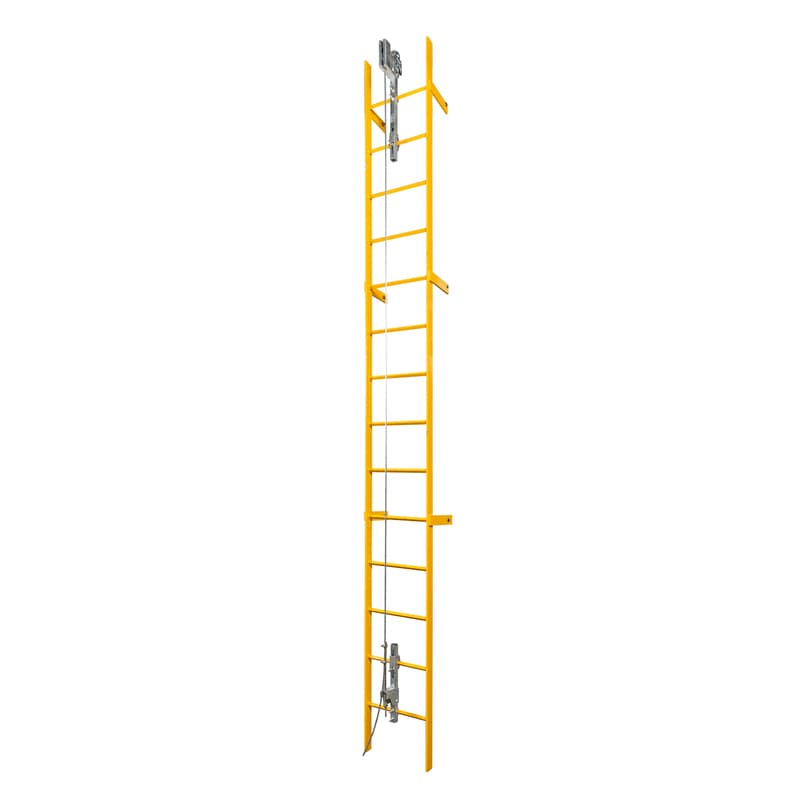

The Guardian Cable Climbing System – Safety in Motion

The Guardian Cable Climbing System is an innovative Personal Fall Arrest System (PFAS) designed for fixed ladders or other vertical height safety applications. It offers easy installation and a patent-pending shock absorber for superior arrest force mitigation in the event of a fall. Robust, adjustable mounting clamps reduce needed hardware by up to 25%* for quicker, simpler installation while lowering the risk of dropped objects at height. The 3/8” 1 x 7 galvanized steel cable resists wear and corrosion for a long service life, and the bottom bracket tensioning system provides easy and accurate cable tensioning for a worry-free installation. The top bracket features an OSHA-compliant fall arrest anchorage connector for incidental single-point tie-offs with compatible lanyards or self-retracting lifelines. The Cable Climbing System comes complete with galvanized top and bottom mounting brackets, rubber cable guides (quantity based on system height), swaged energy-absorbing cable assembly, and all necessary installation hardware

If known, input the specific Part Number here of a pre-configured product:



Features

  • Galvanized Steel Mounting Brackets with mounting hardware included
  • Patent-Pending Durable And Convenient System Installation with all hardware included: Reduces installation hardware by up to 25%*
  • Integrated Patent-Pending Shock Absorber: Reduced arresting forces with a pre-swaged all metal design
  • Cable Guides Included: Secures cable in place and effortlessly disconnects for smooth transitions
  • ANSI Z359.16 Compliant when used with Guardian C7 Cable Climbing Sleeve
  • 3/8” 1x7 Galvanized Steel Cable: Resists cuts and abrasions
  • Heavy duty construction for a long-lasting design
  • Easy Tensioning System: Apply and maintain proper cable tension with simple hand tools
  • Utilizes 3/8", 1x7, galvanized steel cable
* vs leading ANSI Z359.16 System. Less installation parts. Less risk for dropped objects.


Compliance

This product meets the following regional compliance standards

  • ANSI Z359.16

  • OSHA 1910.29

  • OSHA 1926.1053
