Parapet Anchor for Guardrails

Products / Guardrails

Product images are representative only.

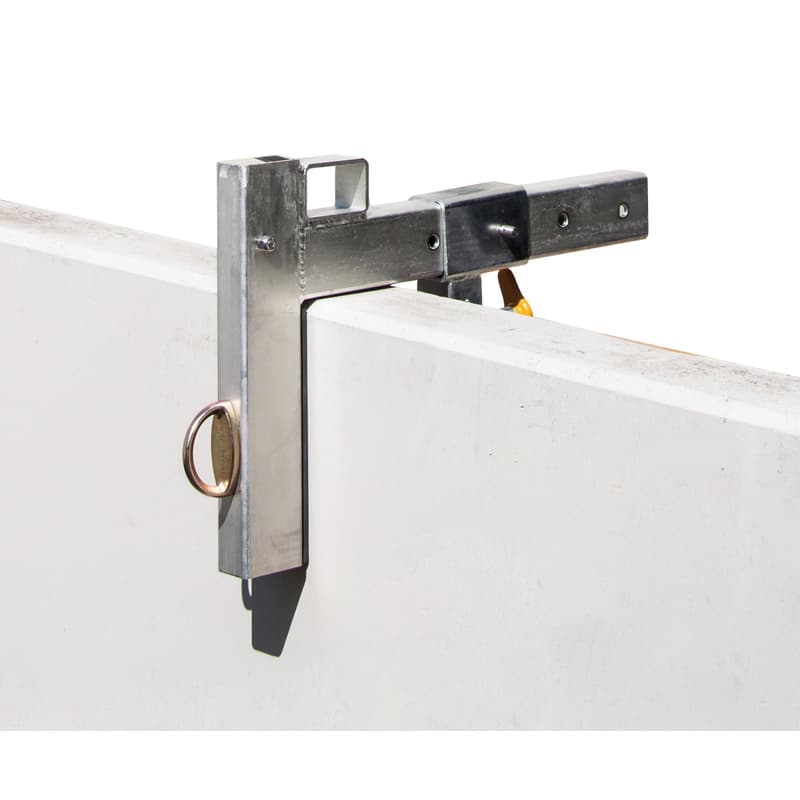

A Fall Arrest anchor for attachment to parapets that can also accommodate a guardrail system

The Parapet Anchor for Guardrails is a multi-purpose product. It primarily functions as a standard fall protection anchor rated, and is uniquely designed to fit over a structural parapet to provide an overhead connection point to those worker below, for example window washers or scaffolders. It additionally includes a guardrail post insert location to allow for a guardrail system to be set up along the parapet to provide protection to those working along the roof.

SKU: 15171

If known, input the specific Part Number here of a pre-configured product:



Features

  • Adjusts to fit a wide range of parapets, from 4"-20" in width
  • A unique combination of Fall Arrest anchor point and guardrail system base component
  • Installs easily to the parapet with no penetrations, relying on an adjustable clamp to fit snugly to the structure
  • Manufactured from zinc-plated steel for added protection against weather and contamination


Specifications

Product weight

31LB / 14.06KG

Product length

25.76'' / 63.50CM

Product height

16'' / 40.64CM


Compliance

This product meets the following regional compliance standards

  • OSHA 1910.140

  • OSHA 1926.502


Industries

This product is often used in the following industries

  • Construction
  • Mining
  • Transportation
  • Oil & Gas
  • Telecoms
  • General Industry
  • Renewables
