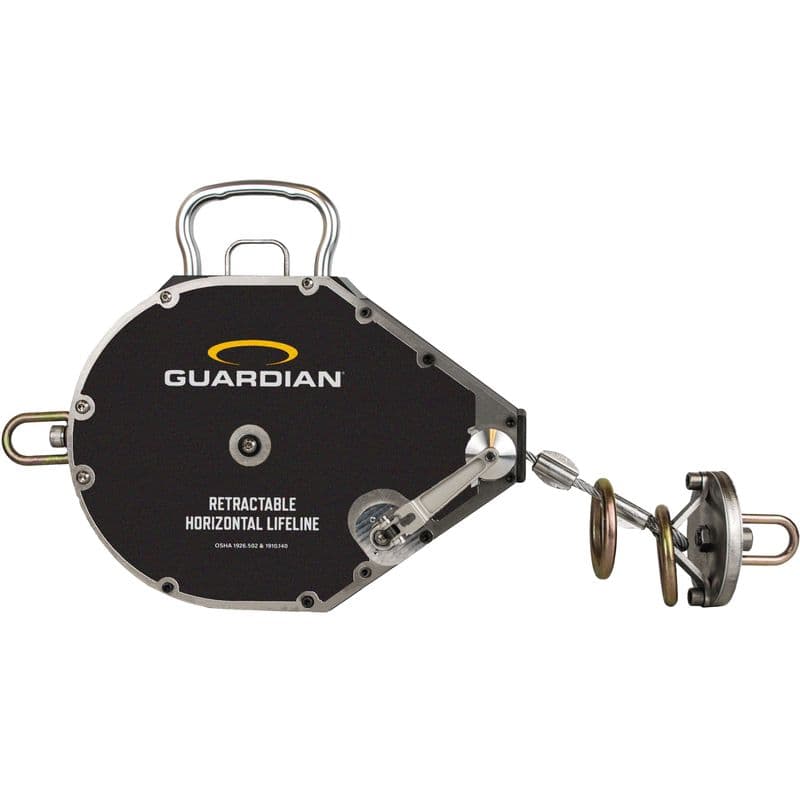

Retractable Horizontal Lifeline
Products / Horizontal Lifelines (HLL)
Product images are representative only.
An easy to set up, high-performing cable HLL
The 60' Retractable Horizontal Lifeline is unlike any other horizontal lifeline offered by Guardian. It combines the span flexibility of our synthetic-rope HLLs with the durability of our fixed-length cable HLL systems. It features an integrated shock absorber and can accommodate up to two workers in Fall Arrest. Designed to be easy for a single worker to set up quickly, the Retractable HLL is a premium offering in the space.
SKU: 04660
Features
- Assembled in the USA
- Ergonomic carrying handle includes easy to access finger "trigger" that, when engaged, allows the lifeline to deploy from the housing
- Swivel connection point to reduce lifeline tangling
- Deployable magnetic tensioner easily retracts/tensions cable, and stays fixed in place while not in use to prevent accidental equipment damage
- Can be used with any of Guardian's HLL-compatible anchor points
- Integral O-ring connection points for convenient worker tie-off
Specifications
Product weight
32LB / 14.51KG
Product length
22.5'' / 57.15CM
Product height
8.5'' / 21.59CM
Compliance
This product meets the following regional compliance standards
OSHA 1910.140
OSHA 1926.502
Industries
This product is often used in the following industries
- Construction
- Mining
- Transportation
- Telecoms
- General Industry
- Renewables
