S-24 Anchor w/baseplate
Product images are representative only.
Post-style anchor designed for tie-back or suspension applications

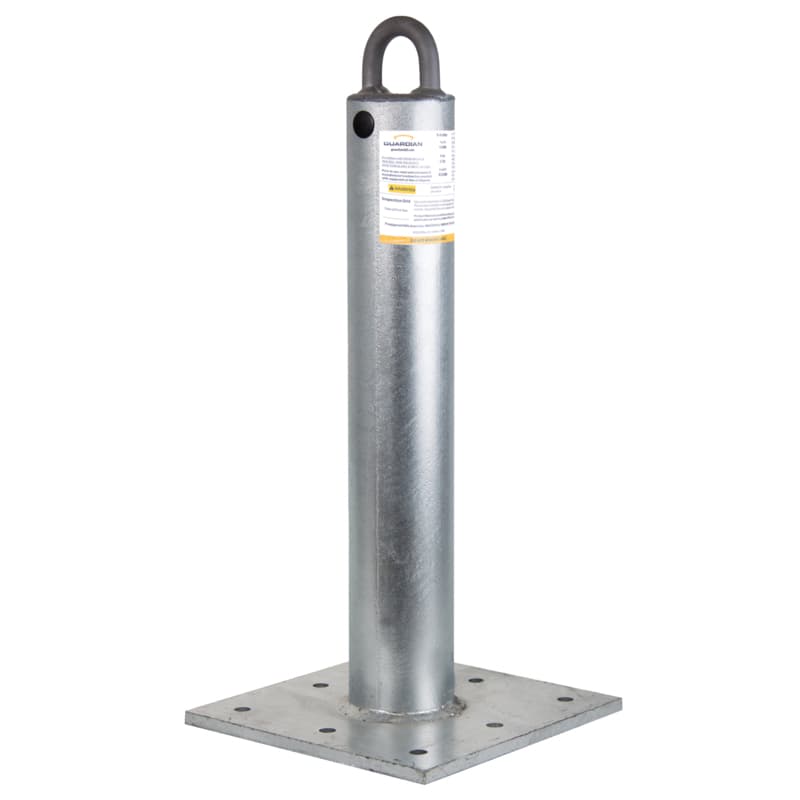

The Guardian 00690 S-Anchor is a post-style fall protection anchor designed for tie-back or suspension applications such as window washing, façade maintenance, and other full-suspension work. Its oversized 24" post allows installation through finished roofs while accommodating a wide variety of finish materials. When not used for suspension, the S-Anchor functions as a standard fall protection anchor. Built for concrete and backer plate installations, and fully compatible with horizontal lifelines, this anchor delivers reliable safety in demanding environments. Weighing 57 lbs. and meeting OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 standards, it is engineered for long-term strength and compliance in both construction and general industry applications.
SKU: 00690
Features
- Reliable Safety For Suspension Work: Post-style anchor designed for tie-back and window washing or façade maintenance applications
- Versatile Installation Options: 24" post accommodates a wide range of roof finish materials during setup
- Durable Construction For Concrete Use: Built specifically for concrete and backer plate installations to ensure long-term security
- Horizontal Lifeline Compatibility: Engineered to work with horizontal lifelines for expanded fall protection setups
- OSHA And ANSI Compliant: Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 safety standards
Specifications
Product weight
57LB / 25.85KG
Product length
21'' / 53.34CM
Product height
24'' / 60.96CM
Compliance
This product meets the following regional compliance standards
OSHA 1910.140
OSHA 1926.502
ANSI Z359.18-2017
Industries
This product is often used in the following industries
- Construction
- General Industry
