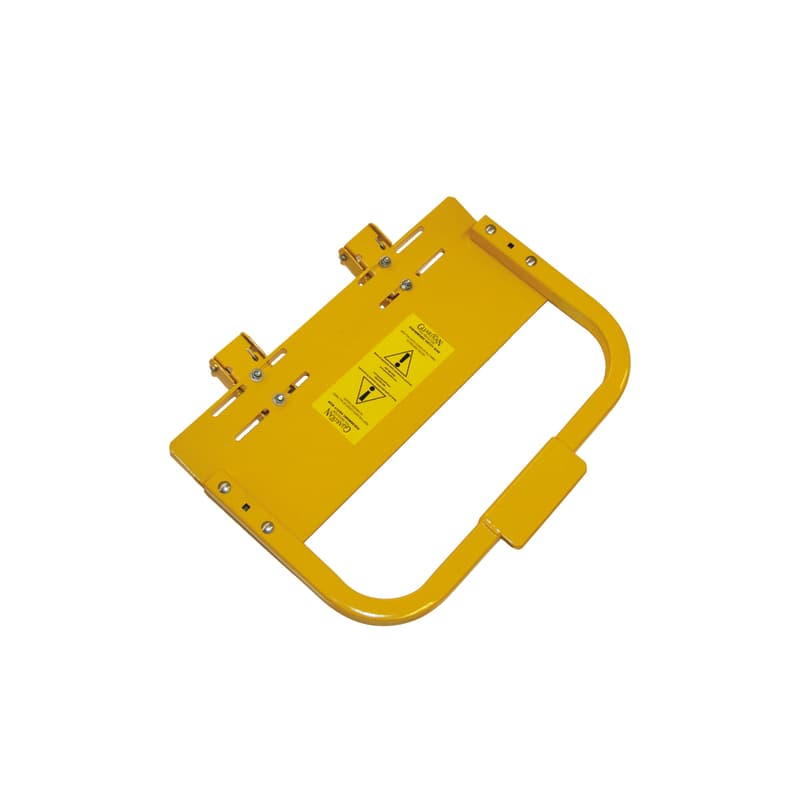

Guardrail Safety Swing Gate

Products / Guardrails

Product images are representative only.

Used in combination with a G-rail System to set up a controlled access area

Controlled access areas are essential in ensuring workers are using the appropriate safety equipment for specific hazards. Guardrail systems are perfect for setting up such areas, provided they are designed to provide clearly identified points of entry/exit. The Guardrail Safety Swing Gate easily attaches to any Guardian G-rail to provide this key element of the controlled access area.

If known, input the specific Part Number here of a pre-configured product:


  • Installs securely and without play through the use of two independent clamp locations
  • Manufactured from powder-coated steel for extra protection against exposure to weather or contaminants
  • Available in lengths ranging from 18"-36" to allow for greater control over controlled access area perimeter
  • Can also be mounted on angle iron or any 2" diameter rails for even greater component flexibility
  • Adjusts maximum 4” below stated width


Product weight

17LB / 7.71KG

Product length

22.1'' / 55.88CM

Product height

17.5'' / 43.18CM


Yes, its integral spring mechanism will keep the gate closed against the guardrail post


This product meets the following regional compliance standards

  • OSHA 1910.140

  • OSHA 1926.502


This product is often used in the following industries

  • Construction
  • Mining
  • Transportation
  • Oil & Gas
  • Telecoms
  • General Industry
  • Renewables
