Any Anchor.
Any Job. Any Time.
Guardian is pleased to announce the addition of the new A5 Concrete Expansion Anchor to its extensive range of anchorage connectors for height safety. The new A5 Concrete Expansion Anchor is the first of many dual EN and OSHA/ANSI compliant anchors launching this year; including the Beamer® 2000 sliding beam anchor, the swivel anchor and Beamer® trolley anchor.

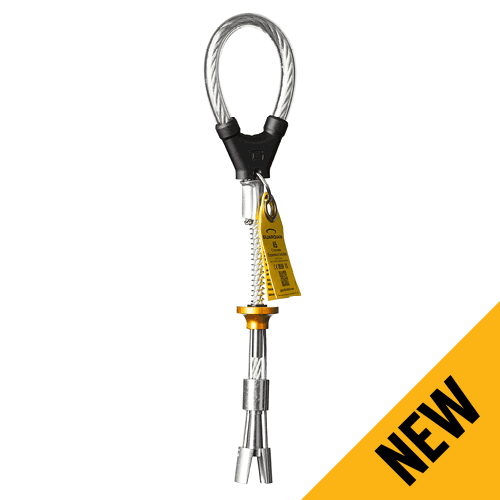

A5 Concrete
Expansion Anchor
The A5 Concrete Expansion Anchor is a popular anchorage connector for concrete substrates. Its ergonomic thumb rest makes installation fast, easy, and comfortable to use. The A5 Concrete Expansion Anchor is a great solution for most concrete applications requiring a simple, reliable, and reusable 22,2 kN (5,000 lb) anchorage connector.

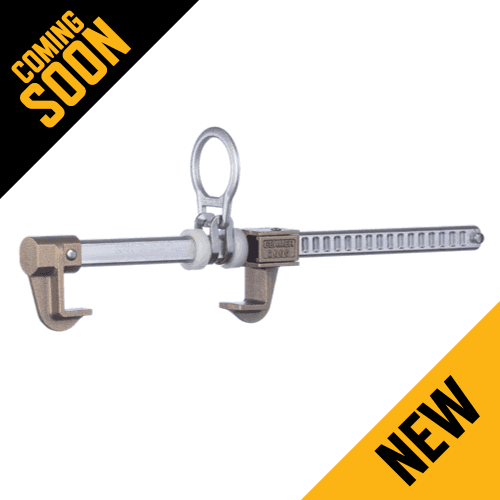

BEAMER® 2000
Sliding BEAM ANCHOR
The Beamer® 2000 is a versatile sliding anchorage connector compatible with both foot-level or overhead tie-offs on structural steel I or H beams. It offers workers at height the freedom to traverse along or under beams without the need to reposition the anchor as work progresses. Durable bronze-manganese hooks allow smooth travel along the beam, and the oversized adjustment lever locks securely, yet is easily manipulated with gloved hands. The Beamer® 2000 is simple to install and is available in two sizes - the ‘Standard’ Beamer® 2000 fits beam flanges 9 cm - 35.5 cm wide and up to 3 cm thick, while the ‘Wide’ Beamer® 2000 accommodates flanges from 15.25 cm - 40.6 cm wide and up to 3 cm thick.

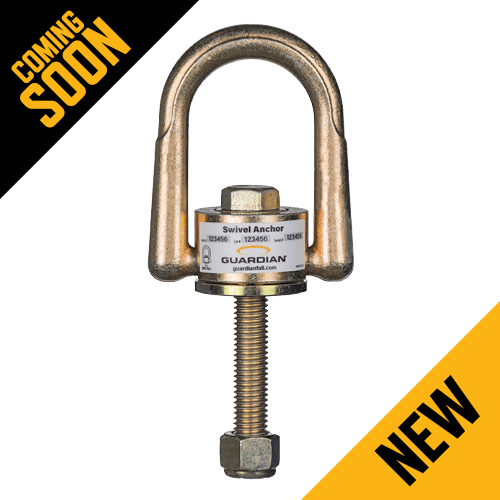

Swivel Anchor
The Swivel Anchor is a popular anchorage connector for both concrete and metal substrates. Its design includes a full size D-ring for easy connections and a dual swivel for 360-degree mobility. Comes with an adjustable bolt assembly.

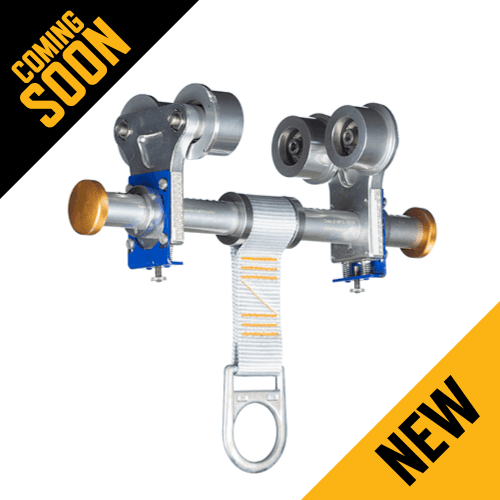

BEAMER® TROLLEY
ANCHOR
The Beamer® Trolley Anchor is designed to be used in combination with either a shock absorbing lanyard or self-retracting lifeline (SRL) in Fall Arrest applications. It may also be used for Restraint and Work Positioning. Its free moving rollers allow for smooth travel around the work area while always remaining tied off, and its safety locking toggles allow for both easy adjustment and eliminate the risk of accidental clamp slippage. The Beamer® Trolley Anchor is easy to install and fits I and H beam flanges between 7.6 cm - 25.4 cm wide up to 2.2 cm thick.
